Steam Generator
This line of L-DT steam generators is made in a robust tube coil design. Compact and with a small content of steam/water (small pressure vessel).

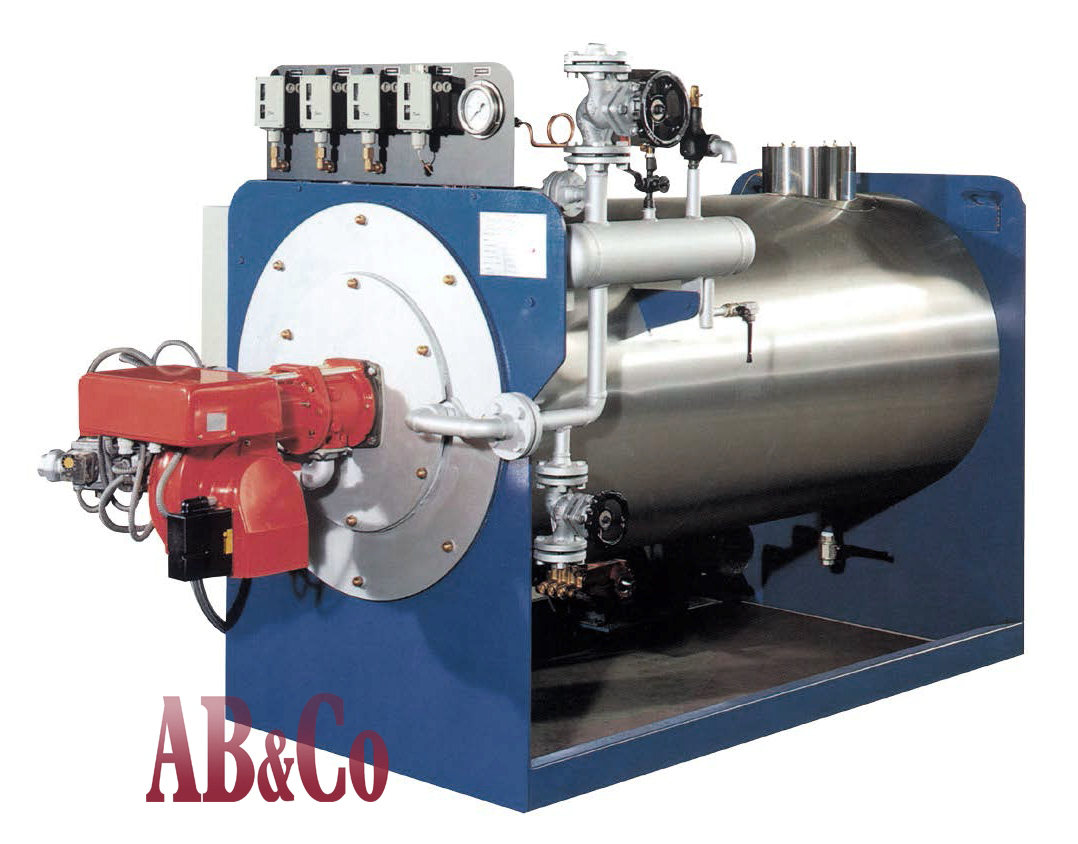

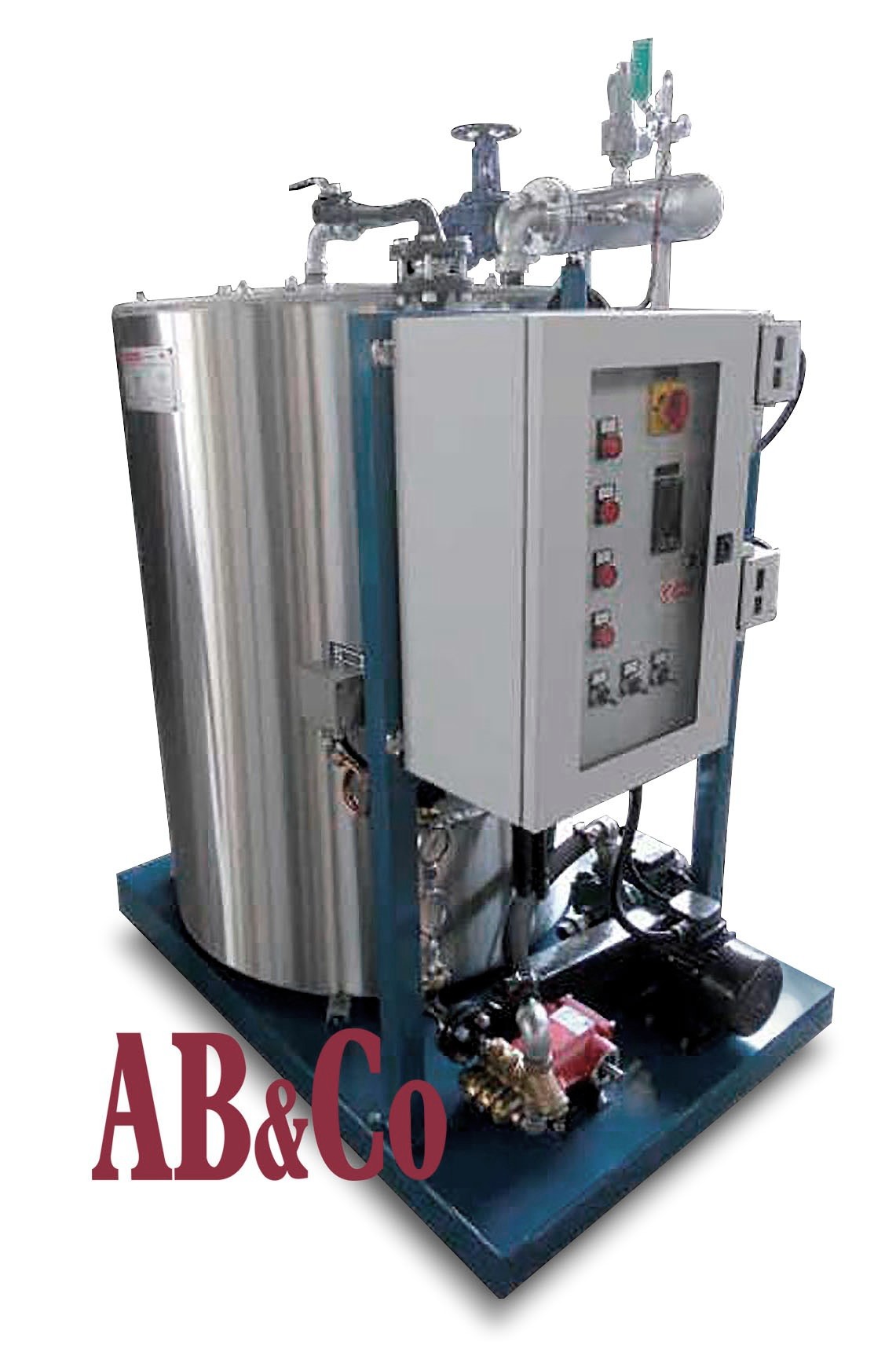

Available in both vertical and horizontal design and in numerous sizes and pressure stages.
They are made for production of saturated steam – energized by natural gas, LPG, bio-gas, fuel oils and combinations hereof.
They offer a full 3-pass design ensuring high efficiency and lowest emission according to the most demanding regulations in EU i.e. design with special low-NOx burner and large combustion chamber volume.
These industrial steam generators are especially designed for demanding conditions including 24/7 operations.
Many optional designs – for instance control for 72 hours without surveillance.
Technical description
Design according PED 2014/68/EU & EN-standards. CE-marked and with full documentation.
A very compact steam boiler type – energized by natural gas, LPG, bio-as, fuel oil and combinations hereof.

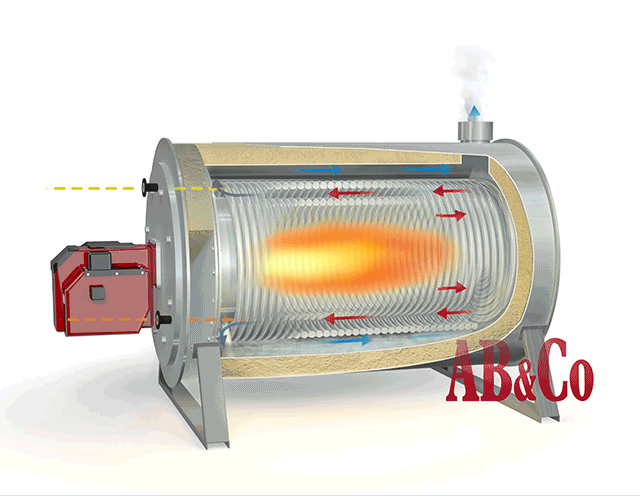

This boiler model is producing saturated steam – by heating up and evaporating feed water into saturated steam inside a long single tube that is winded-up into a double tube coil.
This design ensures a small and very safe pressure vessel volume with no risk of steam explosions but also means that it starts-up very fast.
The full 3-pass design ensures a high efficiency and lowest emission according to the most demanding regulations in EU – equipped with a special low-NOx burner and designed with an extended combustion chamber volume.
Available in numerous sizes and pressure stages.
Need in-depth technical data and details?
Typical capacities, dimension tables, diagrams, illustrations, photos with examples are collected in our Technical Knowledge Center.
Technical data:
Steam Generator
| Subject | Technical data |
| Brand | AB&CO (Copenhagen, Denmark) |
| Models | L-DT |
| Steam Output | Up to 3.000 kg/h steam |
| Net Heat Output | Up to 2.000 kW |
| Working Pressure | 3 – 15 barg steam operating pressure |
| Working Temperature | Up to 200°C (saturated steam) |
| Energy Source | Fuel gas, fuel oil and combinations |
| Energy Efficiency 1 | Up to 90 – 92% (standard boiler efficiency) |

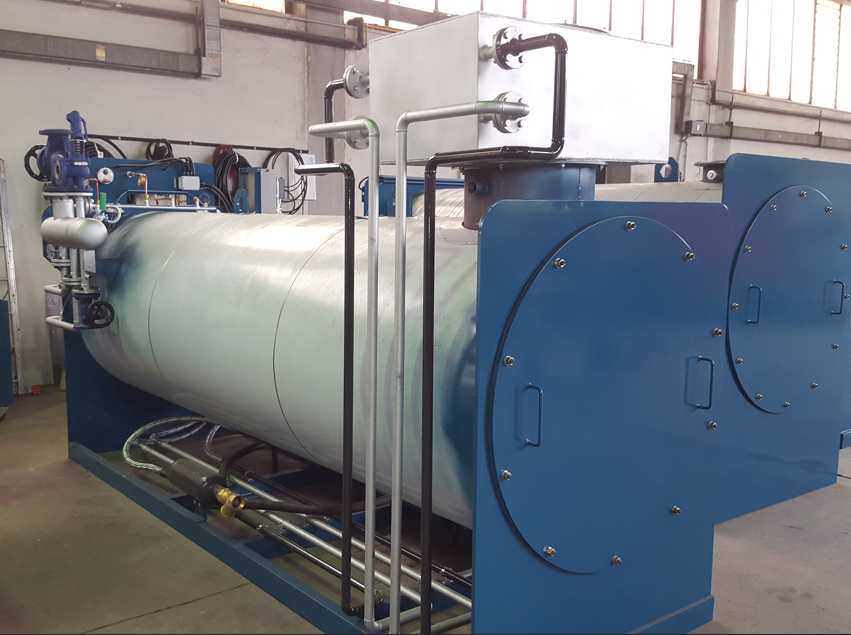

| Energy Efficiency 2 | Up to abt. 100% with build-on economizer |
| Extent of the Standard Design | – Complete steam boiler unit design – Full automatic steam boiler control – Build-on feed water pump and burner – Level & feed water regulator – Armatures, valves, indicators / gauge – All safety equipment and devices |

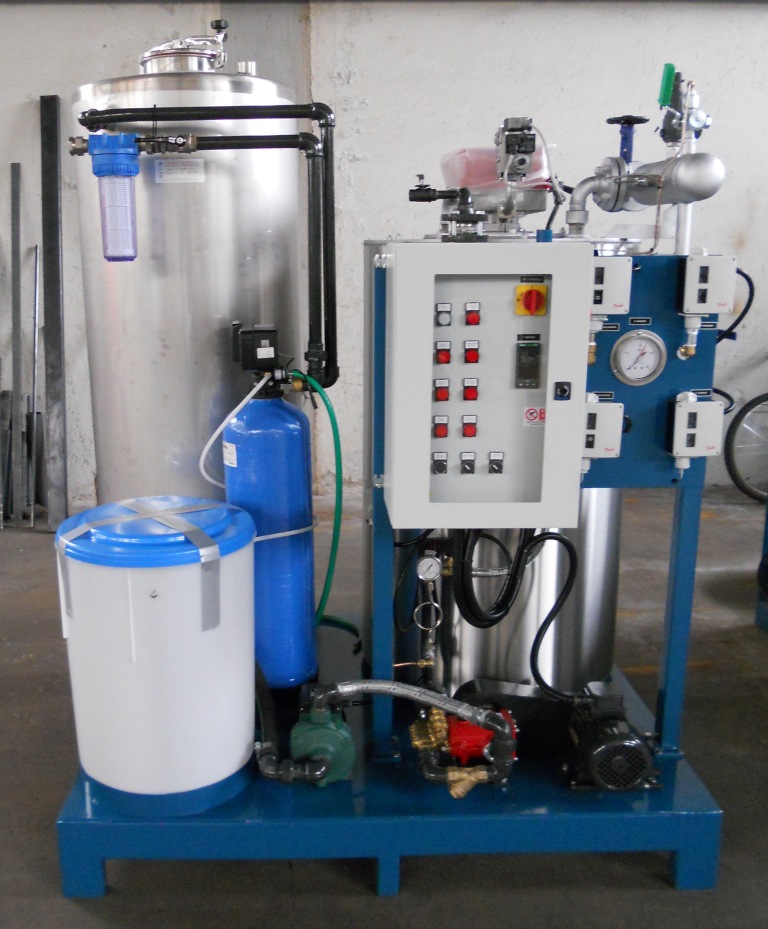

| Options / Special Design | – Vertical or horizontal design – 72 hours without surveillance – Container solutions – Feed water tank and treatment – Skid-mounting of all above |
